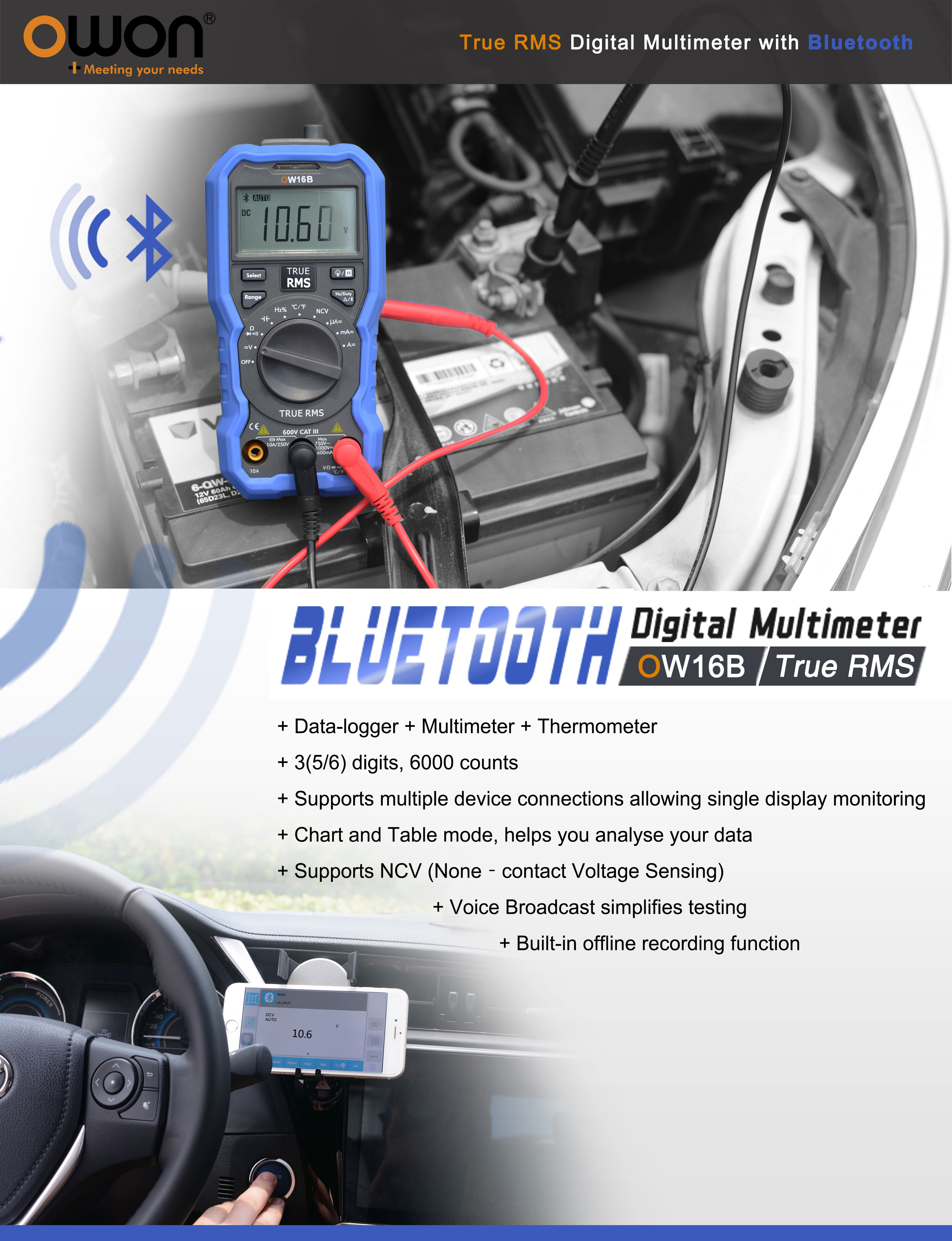

OWON OW16 Series 3 5/6 NCV Digital Multimeter
+ 3 5/6 bit resolution
+ Data Logger + Multimeter + Thermometer (Data logger function only for OW16B)

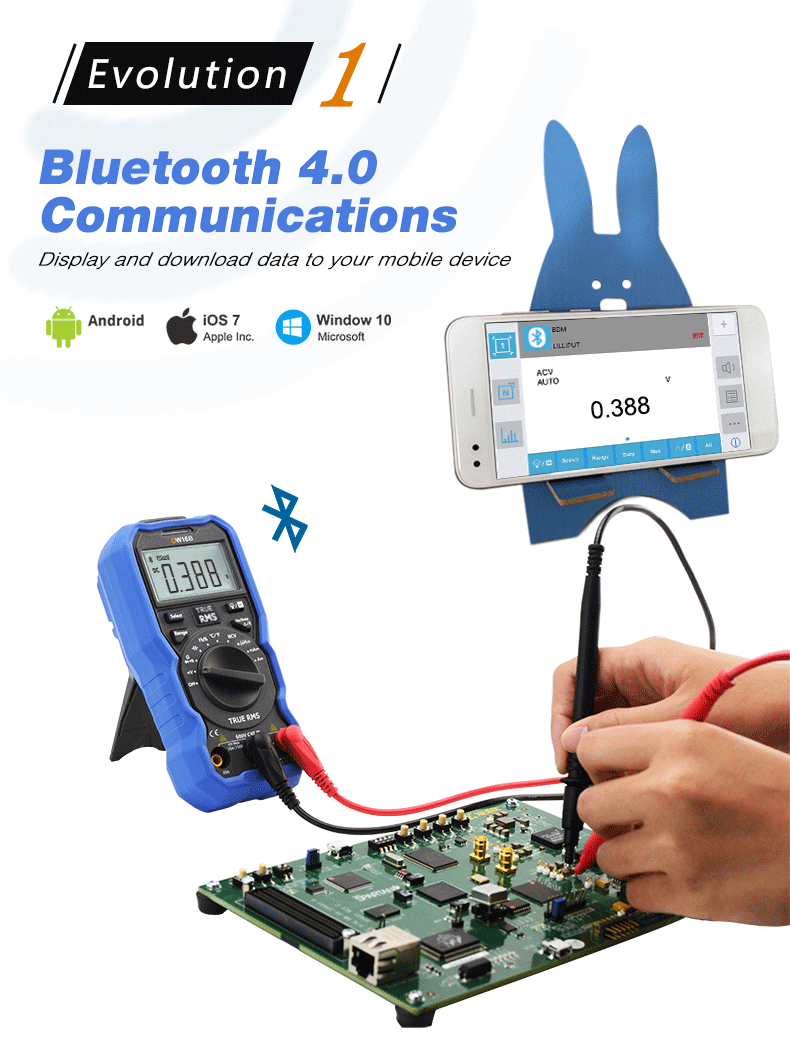

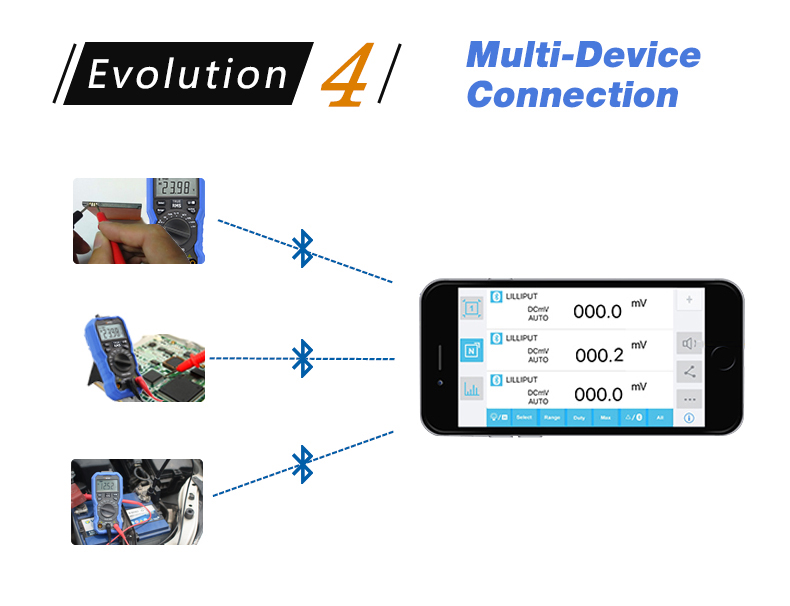

+ BLE 4.0 wireless transmission, more stable, less power consumption (only for OW16B)

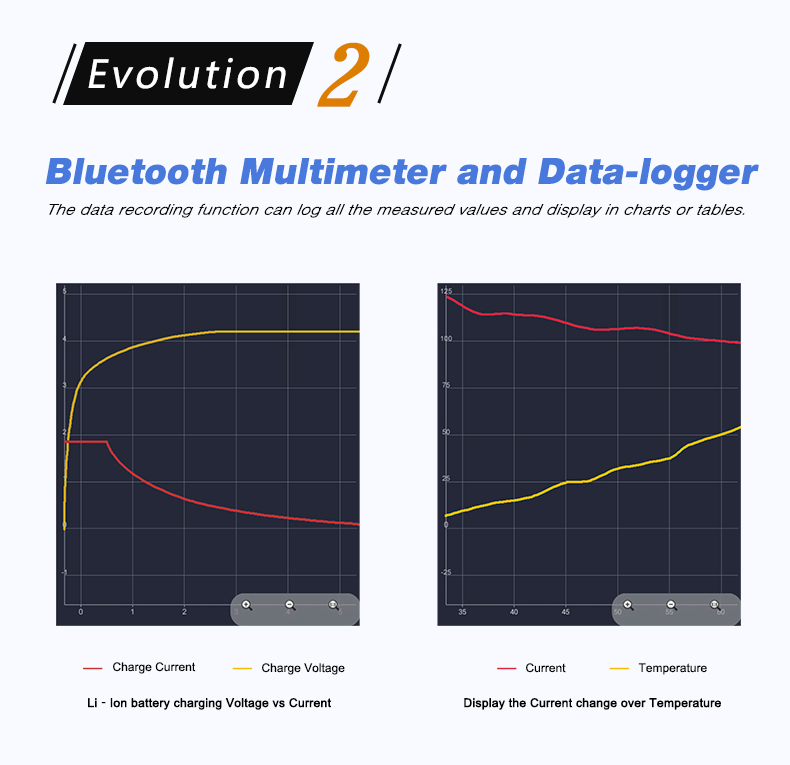

+ Chart and Diagram mode helps to analyze the data tendency (only for OW16B)
+ Support NCV non-contact voltage sense
+ True RMS test supported
+ Widely supported on Android, iOS (only for OW16B)

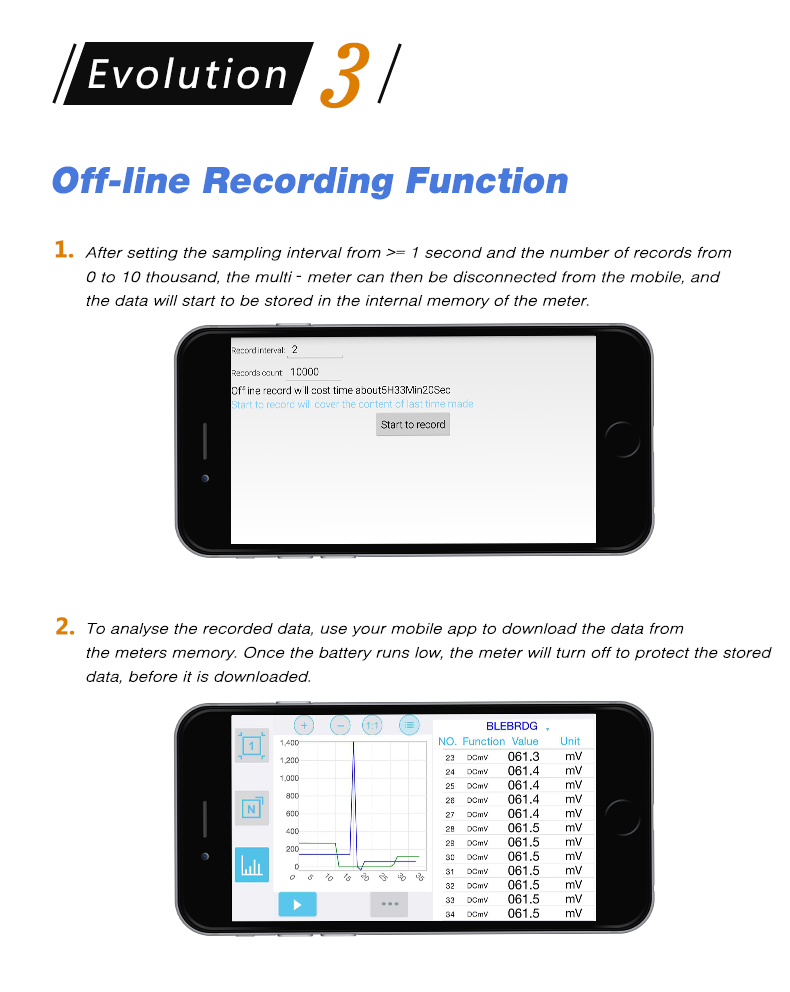

+ Build-in offline record function (only for OW16B)
PDF Export
E-mail UsProduct Details

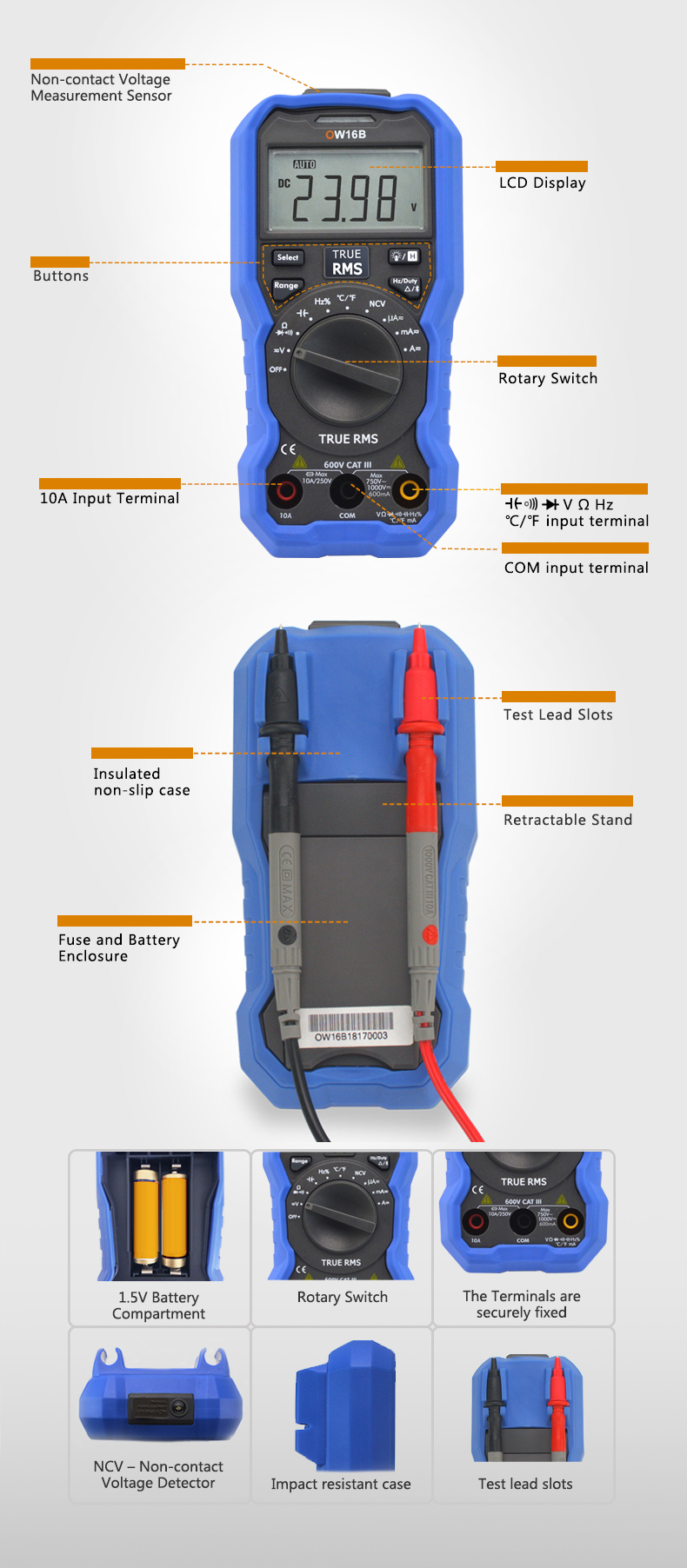

OWON OW16 handheld multimeters
Video
Specifications
Model： OW16A & OW16B
| Measurement Range | Resolution | Accruacy | ||
|---|---|---|---|---|
|
DC Voltage |
6.000V/60.00V/600.0V | 0.1mV | ±(0.5%+2 dig) | |
| 1000V | 1 V | ±(0.8%+2 dig) | ||
|
AC Voltage (V) |
6.000V/60.00V/600.0V | 0.1 mV | ±(0.8%+3dig) | |
| 750V | 1 V | ±(1%+3dig) | ||
|
DC Current (A) |
μA |
600.0uA/6000μA ( EU ) | 0.1μA | ±(0.8%+2dig) |
|
mA |
60.00mA/600.0mA | 0.01mA | ||
|
A |
10.00A | 0.01A | ±(1.2%+3dig) | |
|
AC Current (A) |
μA |
600.0uA/6000μA （EU） | 0.1μA | ±(1%+3dig) |
|
mA |
60.00mA/600.0mA | 0.01mA | ||
|
A |
10.00A |
0.01A |
±(1.5%+3dig) | |
| Resistance (Ω) | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ | 0.1Ω | ±(0.8%+2dig) | |
| 60.00MΩ | 0.01 MΩ | ±(2%+3dig) | ||
| Capacitance (F) | 60.00nF/600.0nF/6.000μF/60.00μF | 0.01nF | ±(3%+3dig) | |
| 600.0μF/6.000mF/60.00mF | 0.1μF | ±(3%+5dig) | ||
| Frequency | 9.999Hz/99,99Hz/999.9Hz/9.999kHz/ 99.99kHz/999.9kHz/9.999MHz |
0.001Hz | ±(0.8%+2dig) | |
| Duty Ratio (%) | 0.1%~99.9%(typical value：Vrms=1V,f=1kHz) | 0.1% | ±(1.2%+3dig) | |
| 0.1%~99.9%(≥1kHz) | ±(2.5%+3dig) | |||

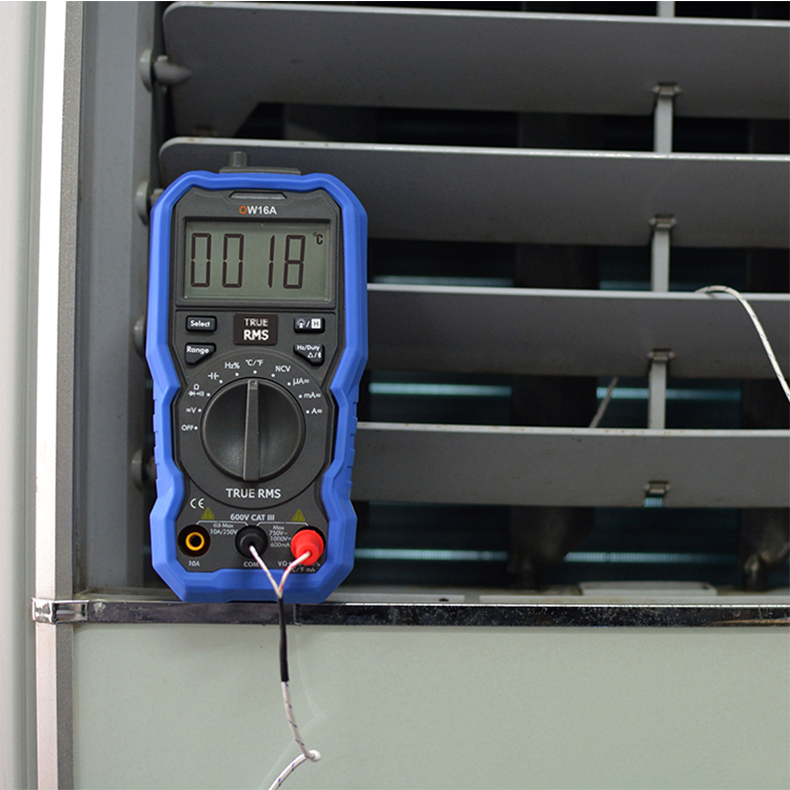

| Temperature (°C/°F) | '- 50 ℃~400℃ | 1℃ | ±(2.5%+3dig) | |
| '-58 ℉ ~ 752 ℉ | 1℉ | ±(4.5%+5dig) | ||
| Display | 5999 | |||
| Frequency Response | (40 - 1000) Hz | |||
| Shift Rate | 3 times/s | |||
| Auto ranging | √ | Data Hold | √ |
| Auto/Manual Scale Switch | √ | Bluetooth Module | Only for OW16B |
| LCD Backlight | √ | ||
| Diode Test | √ | True RMS | √ |
| Sleep Mode | √ | Input Protection | √ |
| Auto Power-off | √ | Input Impedance | ≥10MΩ |
| Continuity Test | √ | Battery | 3V (1.5V x 2) AA |
| Low-battery Indicator | √ | Relative Measurement | √ |
Support
Accessories
The accessories subject to final delivery.
-
Quick Guide -

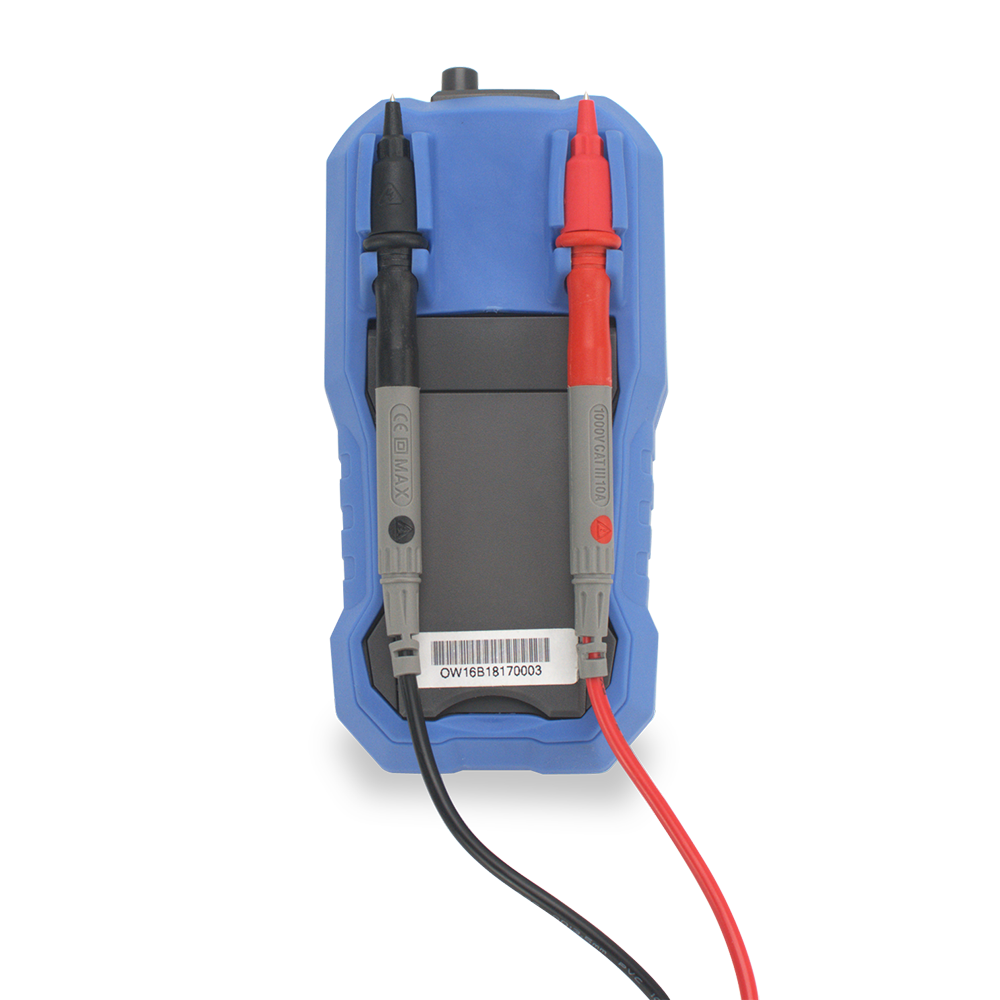

Multimeter Lead -
Alligator Clip (optional) -
K-type Thermocouple -
Bolt Driver
